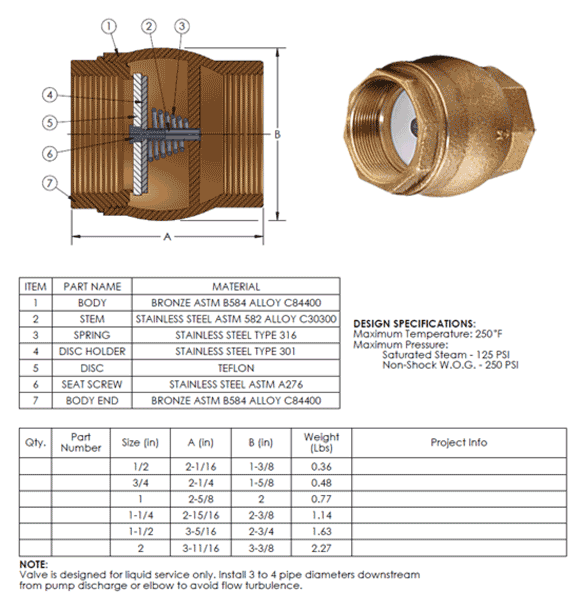

The VCSIL-BT bronze check valve threads into place for copper pipe systems for liquid service. The low profile is designed to minimize head loss, with a spring loaded center guided disc designed for low cracking pressure and silent shut-off.
1/2" to 2" diameters.
swipe to see more products
|
SIZE
(in)
|
ENDS | BODY MTL |
WT
(lbs)
|
A
(in)
|
B
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|
| 1/2 | FNPT THREAD | BRONZE | .36 | 2 1/16 | 1 3/8 | VCSIL-BT0050 |
| 3/4 | FNPT THREAD | BRONZE | .48 | 2 1/4 | 1 5/8 | VCSIL-BT0075 |
| 1 | FNPT THREAD | BRONZE | .77 | 2 5/8 | 2 | VCSIL-BT0100 |
| 1 1/4 | FNPT THREAD | BRONZE | 1.14 | 2 15/16 | 2 3/8 | vcsil-bt0125 |
| 1 1/2 | FNPT THREAD | BRONZE | 1.65 | 3 5/16 | 2 3/4 | VCSIL-BT0150 |
| 2 | FNPT THREAD | BRONZE | 2.27 | 3 11/16 | 3 3/8 | VCSIL-BT0200 |
